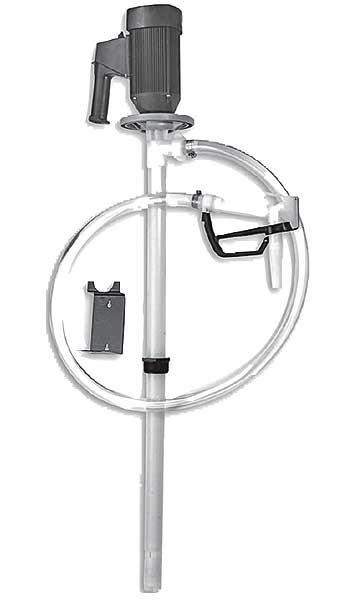

Unique design allows operators to safely measure and transfer concentrated and very
aggressive liquids. Common applications include: Sulfuric Acid 66 Baume, Propionic
Acid, Concentrated Nitric - 98 and Hydrofl uoric Acid. 034
Motor type: ENC-S
Pump assembly: PVDF (Kynar®)
Pump length: 39” (1000 mm)
PVC hose: 6 ft. (1.8 m), I.D. 1” (25 mm)
Dispensing nozzle: 1” (25 mm), PVDF
Flow meter: Digital / PVDF totalizer
Barrel adapter: Polypropylene
Storage bracket: 16 gauge coated steel
Max. viscosity: 300 CPS / Mpas
Max. temperature: 175°F (80°C)
Voltage: 115
Model Number:
52-9510
Part Number:
25-10311
Your Price:
CALL
|
