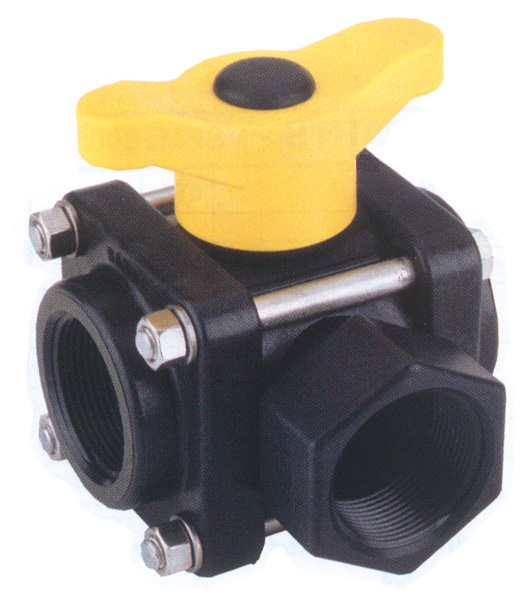

1" 3-Way Side Load Poly Valve. Max PSI - 100. Pipe Size - 1". Opening thru Ball 1". Handle Type - Straight. Side Load directional flow, right or left. Valve cannot be turned off.
• Stainless Steel bolts.
• Precision molded in polypropylene. Polypropylene is reinforced with fiberglass for additional strength.
• Self-aligning ball moves freely against the PTFE seats for smooth operation.
• Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats.
• FKM (viton type) seats.
• PTFE self-lubricating stern bushings and seats.
• Maximum operating pressure 100 P.S.I.
Model Number:
V100SL
Part Number:
10-15150
Weight:
2 lb
Your Price:
CALL
|
