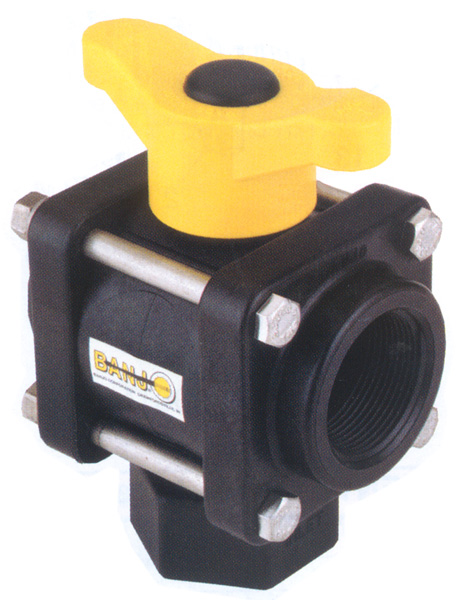

1-1/4" 3-Way Poly Ball Valves - Bottom Load - PPL

1-1/4" 3-Way Bottom Load Poly Valve. Max PSI - 100. Pipe Size - 1-1/4". Opening thru Ball 1-1/2". Handle Type - T. Bottom Load directional flow, right or left. Valve can be turned off to stop flow.
• Stainless Steel bolts.
• Precision molded in polypropylene. Polypropylene is reinforced with fiberglass for additional strength.
• Self-aligning ball moves freely against the PTFE seats for smooth operation.
• Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats.
• FKM (viton type) seats.
• PTFE self-lubricating stern bushings and seats.
• Maximum operating pressure 100 P.S.I.

Model Number: V125BL
Part Number: 10-15154

Weight: 3 lb

Your Price: CALL

Call for competitive pricing or to locate a distributor in your area (877) 734-3759

All dimensions and weights are approximate to the best of our knowledge. If exact size tolerances are required please contact our customer service department prior to ordering.
