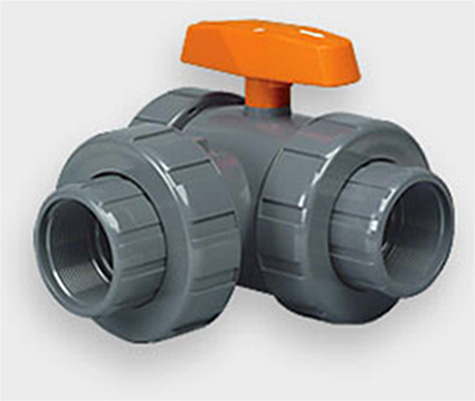

1/2" CPVC/FPM Three-Way Lateral Ball Valves - Skt/Thd

Lateral Three-Way Ball Valves are assembled with silicone free lubricant and have PTFE seats. CPVC Valves are supplied with both socket and threaded end connectors.
Lateral Flow Pattern: Hayward Three-Way Lateral Ball Valves come standard with a ball that permits the flow to be diverted from the center port to either the left or right ports, there is no off position.
True Union Design: This makes these valves very easy to maintain by allowing for easy removal from a piping system without breaking down the piping connections. Just unscrew the three assembly nuts and lift the valve body out of the line.
Solid Actuator Mounting Design: For rock-solid actuator mounting, the valve incorporates a unique design whereby the mounting bracket mounts directly to the valve body. This assures proper alignment of the actuator to the valve without creating any damaging side loads to cause premature stem seal failure.
No Metal, No Corrosion: Hayward all plastic three-way valves contain no metal parts. The valves will never fail because of corrosion and they do not require painting or epoxy coating to stand up to aggressive environments.
007

Model Number: LA2050ST
Part Number: 10-25131

Length: 4.6000 in
Height: 4.4150 in
Weight: 1 lb

Your Price: CALL

Call for competitive pricing or to locate a distributor in your area (877) 734-3759

All dimensions and weights are approximate to the best of our knowledge. If exact size tolerances are required please contact our customer service department prior to ordering.
