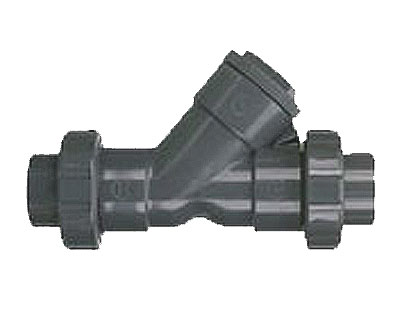

1/2" CPVC True Union Y-Check Valves - Threaded

True Union Y-Check Valves have an FPM o-ring seal and seat.
Backflow Prevention: Hayward Y-Check Valves prevent reversal of flow in piping systems. They are ideal where backflow could potentially cause damage to pumps, filters or process equipment.
Reliable Operation: The valve operates without the need for any adjustments or settings. A plastic coil (not a spring) supports the disc inside the valve body. When the inlet flow stops, backpressure (a minimum of 2 PSI is required) moves the disc with its elastomer o-ring onto a plastic seat, shutting off the flow. The plastic coil reliably guides the disc onto the seat.
Easy Maintenance: Hayward Y-Check Valves are easily serviced without disconnection from the piping system. Just remove the heavy duty hex cap for quick access to the internal valve components.
No Corrosion Failures: Because of their all plastic construction, these valves will never jam or stick because of rust or corrosion. Also they will not contaminate sensitive fluids that come into contact with them. And they require no painting or epoxy coatings to stand up to corrosive environments.
Model Number: YC20050TU
Part Number: 10-25282
Length: 6.6400 in
Weight: 1 lb
Your Price: CALL

Call for competitive pricing or to locate a distributor in your area (877) 734-3759

All dimensions and weights are approximate to the best of our knowledge. If exact size tolerances are required please contact our customer service department prior to ordering.
