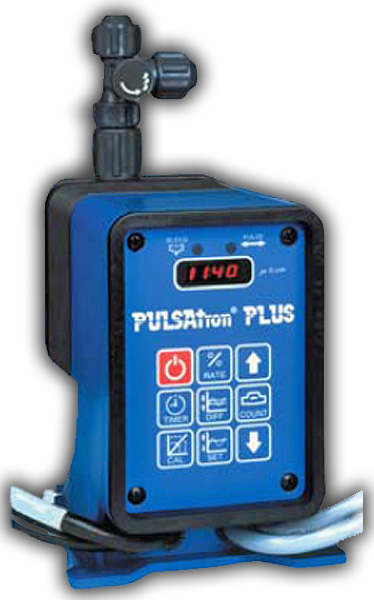

PULSAtron Plus Series CW Chemical Feed Pump

The PULSAtron Plus Series CW pump was designed to control conductivity and feed inhibitor in an open-air cooling tower. Chemical feed is initiated and controlled by input from a water meter. The Series CW combines everything you need to control conductivity and feed inhibit into one unique, compact package to create a simple and cost effective metering control system.

Bleed is initiated when the conductivity level reaches the user-specified set point. Chemical feed is initiated and controlled by input from a water meter.

Note: Pricing is on pump with standard options. Other variables available based upon applications. Please call customer service for assistance.

• Conductivity Control with Water Meter Feed
• Programmable Limit Timer
• Easy User Interface
• Complete Control System
Model Number: LW02RA-VTC1-2X-XXX
Part Number: 25-25976
Length: 9 1/2 in
Width: 5 in
Height: 9.6000 in
Weight: 13 lb
Models: 6 gpd at 150 PSI
Controls: Rising Set Point (Standard)
Electrical: 115 Volt
Wet Ends: PVC / TFE / Ceramic
Connection Sizes: 3/8 O.D. Tubing
Your Price: CALL

Call for competitive pricing or to locate a distributor in your area (877) 734-3759

All dimensions and weights are approximate to the best of our knowledge. If exact size tolerances are required please contact our customer service department prior to ordering.
