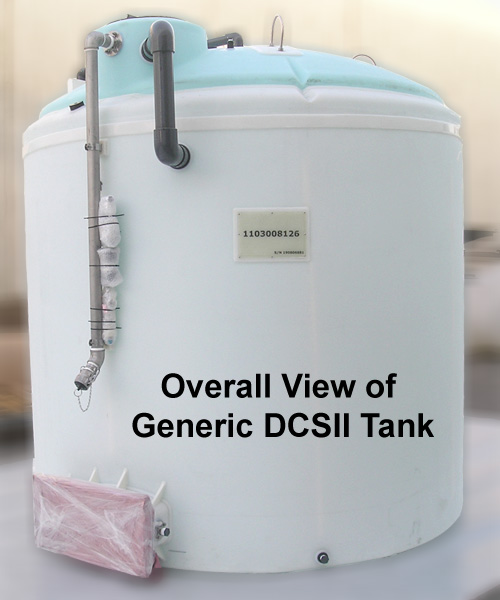

1500 Gallon DCSII double walled tank system, 87” dia. x 116” ht., polyethylene construction, includes integral interstitial spacers, 18" OD vented twist lid, 2" hard-piped overflow from the primary tank into the interstitial space, (2) 2” interstitial mushroom vents and a 1" interstitial drain outlet with a PVC plug. 000
Standard options include:
• Double wall tank drain outlets
• Welded process inlets and outlets from 1/2" to 24"
• Inverse float level indication systems
• Ultrasonic level indication and control systems
• Interstitial leak detection systems
• Fiberglass ladders, stairs and platforms
• Mixers and mixing systems
• Seismic and wind resistant systems
• Insulation
• Heat tracing and cooling systems
• In-house engineering and cad design department
We can also manufacture dozens of non-standard sizes and styles, so if you have a unique configuration you require, we may be able to accommodate that for you.
Some unique designs we have made include:
• Small footprint configurations for tight spaces
• Extra large interstitial spaces for mounting pumps and equipment in the secondary space
• Double wall systems with cone tanks as the primary tank
• Rectangular double walled systems
• Horizontal double walled systems high heat systems
Model Number:
DCSII-1500
Part Number:
01-26028
Diameter:
87 in
Height:
116 in
Your Price:
CALL
Notice: Prices listed are FOB point of manufacture. A handling fee of $35 will be added to drop ship orders less than $1,500. Tanks shipped or will called from Corona will have a nominal freight-in surcharge added to price.
|
