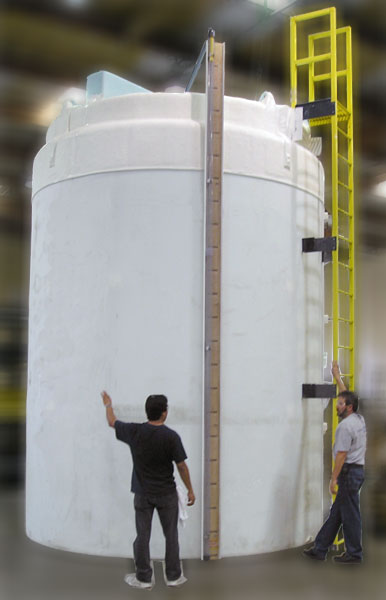

10500 Gallon DCS-II Dual Containment Tank System

10500 Gallon DCSII double walled tank system, 141” dia. x 202” ht., polyethylene construction, includes integral interstitial spacers, 18" OD vented twist lid, 2" hard-piped overflow from the primary tank into the interstitial space, (2) 2” interstitial mushroom vents and a 1" interstitial drain outlet with a PVC plug. 000

Standard options include:
• Double wall tank drain outlets
• Welded process inlets and outlets from 1/2" to 24"
• Inverse float level indication systems
• Ultrasonic level indication and control systems
• Interstitial leak detection systems
• Fiberglass ladders, stairs and platforms
• Mixers and mixing systems
• Seismic and wind resistant systems
• Insulation
• Heat tracing and cooling systems
• In-house engineering and cad design department

We can also manufacture dozens of non-standard sizes and styles, so if you have a unique configuration you require, we may be able to accommodate that for you.

Some unique designs we have made include:
• Small footprint configurations for tight spaces
• Extra large interstitial spaces for mounting pumps and equipment in the secondary space
• Double wall systems with cone tanks as the primary tank
• Rectangular double walled systems
• Horizontal double walled systems high heat systems

Model Number: DCSII-10500
Part Number: 01-26033

Diameter: 141 in
Height: 202 in

Your Price: CALL

Call for competitive pricing or to locate a distributor in your area (877) 734-3759

All dimensions and weights are approximate to the best of our knowledge. If exact size tolerances are required please contact our customer service department prior to ordering.

Notice: Prices listed are FOB point of manufacture. A handling fee of $35 will be added to drop ship orders less than $1,500. Tanks shipped or will called from Corona will have a nominal freight-in surcharge added to price.
