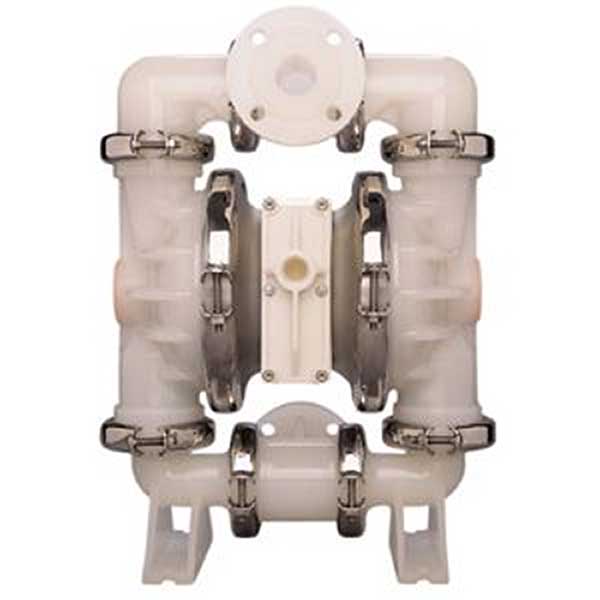

P4/PPAPP/TNU/TF/PTV, 1-1/2" polypropylene pump, fitted with Teflon elastomers. 022
Your Needs
• Must be reliable
• Must be durable
• Ease of maintenance
• Submersible
• Keep it cost effective
Our Solution
• Clamped wetted path design
• Proven air distribution systems
• Progressive diaphragm technology
• Portable models
The Results
• Trouble free operation
• Utilitarian pumps
• Lower operational costs & downtime
• Longer MTBF (Mean Time Between Failure)
• Your Success
Note: Other configurations available for demanding applications. Please contact customer service for assistance.
Model Number:
04-0122
Part Number:
25-26545
Width:
15 1/2 in
Height:
20.7480 in
Weight:
37 lb
Flow Rate To:
354 LPM (94 GPM)
Max Pressure =:
8.6 BAR (125 PSI)
Max Suction Lift Capabilty:
4.9 m (16')
Max Diameter Solids:
4.76 mm (3/16")
Elastomer Options:
PTFE +4.4 (+40) to +104.4 (+220) °C (F°)
Wetted Parts & Outer Piston:
PPL / PPL
Air Chamber / Center Section:
Aluminum
Center Block / Center Section:
PPL
Air Valve:
PPL
Diaphragm:
PTFE w/Neoprene Back-Up (White)
Valve Balls:
PTFE (White)
Valve Seats:
PPL
Valve Seat O-Ring:
PTFE Encap. Viton
