The PCS product line is ideal for protecting the environment and your workers from injuries due to spilled or spraying chemicals. Pump Spill Containment Enclosure is great in outdoor applications for keeping your pumps out of the sun and weather.

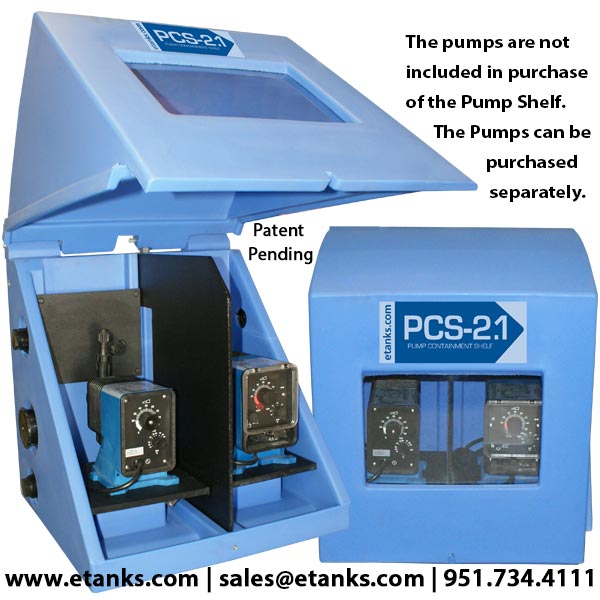

The PCS2.1 is a pump spill containment enclosure made of polyethylene material for outstanding chemical compatibility. The Pump Containment Shelf 2.1 houses up to 2 pumps and in event of leak or discharge from pumps liquids are contained in built-in sump and drained through bottom drain ports. Raised mounting pad keeps your pumps, tubing, and wiring out of spilled chemicals in sump area. (1) 2” and (2) 1” side connection fittings and plugs per side built-in for running tubing, wiring and piping from the exterior to the interior of the enclosure. Cover has built in viewing window to allow operator to visually check for leaks before opening enclosure.
PCS2.1 has a built-in slot for an optional divider shield. In event of chemical leak from both pumps, optional divider shield prevents adverse mixing reaction of incompatible chemicals being used side by side.
Optional controller mounting plate allows for back mounting of Microvision or similar pump controller.
Optional weather strip foam allows for a weather tight seal between the enclosure’s base and cover. Weather strip is adhesive backed PVC foam gasket and shipped loose.
PCS2.1 is available in blue and natural; additional colors available upon request and at additional charge.
Patent Pending.
Model Number:
Part Number:
253-29867
Length:
22 in
Width:
18 1/2 in
Height:
22 in
Weight:
26 lb
Your Price:
CALL
|
