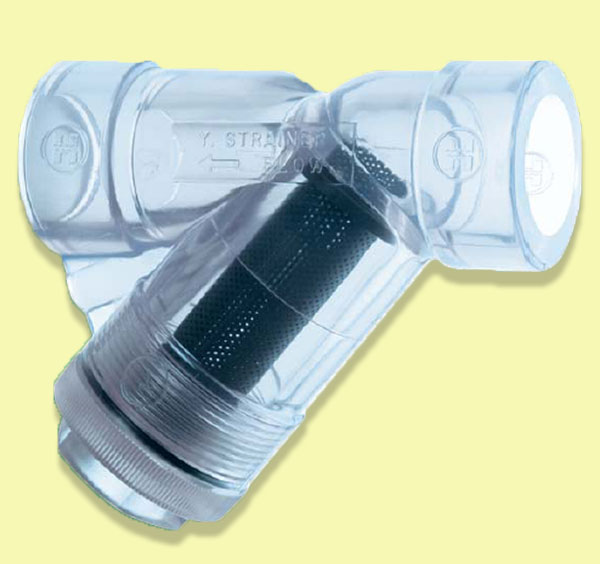

Clear PVC Construction: See how much dirt and debris have been trapped by the strainer screen in the Hayward Clear PVC Y Strainer. The translucent PVC body shows the strainer screen in operation. This helps determine when it needs cleaning based on a visual check of the amount of debris retained by the screen. These Y strainers are available in pipeline sizes up to 2” with socket or threaded connections, and are rated at a full 150 PSI.
Economical Protection: Hayward® Y-Strainers protect piping system components from damage caused by dirt or debris in the process media. They cost less than other types of strainers and are light weight and very compact. Because they can often be supported by the pipeline alone, they work in applications where other types of strainers cannot.
Screens for All Applications: Hayward Y Strainers are supplied with a 1/32” perforated plastic screen. This screen is ultrasonically welded, not glued, for superior strength. Screens fabricated from type 316 stainless steel are also available in openings from ½” down to super fine 325 mesh. All screens have an open area at least twice that of the equivalent pipe size cross-sectional area to minimize pressure drop.
Easy Clean Out: All sizes of Hayward® Y-Strainers feature a heavy-duty hex cap that permits quick and easy removal of the strainer screen when cleanout becomes necessary.
Adaptable Design: Hayward® Y-Strainers work equally well in the horizontal or vertical position, simplifying piping system layout.
All Plastic Construction: Hayward® Plastic Y-Strainers will never rust or corrode and they will not contaminate sensitive process media. 007
Model Number:
YS00050S
Part Number:
12-4600
Length:
3.3800 in
Height:
2.9400 in
Weight:
1 lb
Your Price:
CALL
|
